Uređaji za metalurško rezanje uzoraka

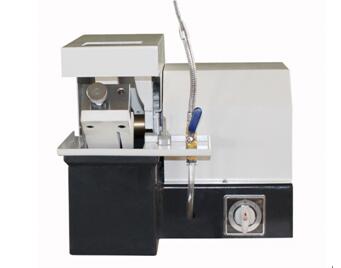

Uređaj za metalurško rezanje uzoraka TMSQ-60

Metallographic Specimen Cutting Machine




Model TMSQ-60 Metallographic Specimen Cutting Machine can be used to cut the general metallographic or petrographic specimen materials. To enable the machine to cut the best specimen in a safe state, this kind of machine is equipped with fully enclosed structure and fast clamping mechanism, and there is also a cooling tank for coolant recycling, in order to clear up the heat produced during cutting and avoid the metallographic or petrographic structure deforming of specimen because of heating influence. This machine features easy

operation and reliable safety. It is the best instrument for specimen preparing and cutting.


Technical specifications:
1. Max. cutting section: Φ60mm
2. Rotate Speed: 2800rpm
3. Abrasive wheel: 250×2×32mm
4. Electric motor: 2.2KW  380V, 50Hz
5. Dimensions : 730×700×540mm

Uređaj za metalurško rezanje uzoraka TMSQ-100

Metallographic Specimen Cutting Machine




Model TMSQ-100 Metallographic Specimen Cutting Machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or petrographic structure. The equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic or petrographic structure deforming of specimen because of heating influence. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Technical specifications:
1. Power: Three-phase four-wire (380V 50Hz)
2. Rotate Speed: 2800rpm
3. Abrasive wheel: 250×1.2×32mm
4. Max. cutting diameter: 100mm
5. Electric motor: Y2-100l-2  3.0KW

Uređaj za metalurško rezanje uzoraka TMSQ-100

Metallographic Specimen Cutting Machine




Metallographic specimen cutting machine is suitable for cutting general metallographic specimens. The cutting machine cut the samples by the high-speed rotating sheets. To avoid the specimen being overheating, the machine is equipped with a cooling system used to take away the heat generated during cutting. The machine has easy operation, easy maintenance, and other advantages.

Technical Parameters:
Power supply: 380V,50Hz
Speed: 2800r/min
Specification of grinding wheel: 250*2*32mm
Max cutting section: Φ30mm
Cutting power: 1.1kw
Net weight: 50kg
Overall dimension: 395*415*360mm

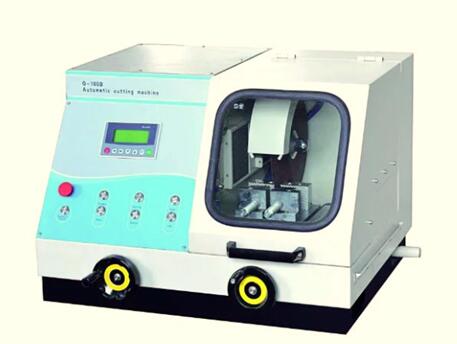

Uređaj za manualno i automatsko metalurško rezanje uzoraka TMSQ-100

Manual&Automatic Cutting Machine/automatic cutting machine




1. Power supply : Three phase four line(380V/50HZ)
2. Spindle speed : 2100r/min
3. Cutting discspecification : Φ350mm×2.5mm×32mm
4. MAX cutting diameter : 100mm
5.Maximum cutting volume:100×200mm
6.Electric machinery:YS90L2-2   3KW
7.Cutting table size:310×280mm
8. Dimension :930×700×610mm

Uređaj za metalurško rezanje uzoraka TMSQ-80

Metallographic Specimen Cutting Machine




Model TMSQ-80 Metallographic Specimen Cutting Machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or petrographic structure. The equipped cooling system can clear up the heat produced during cutting so that it will avoid the metallographic or petrographic structure deforming of specimen because of heating influence. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.

Technical specifications:
1. Power: Three-phase four-wire (380V 50Hz)
2. Rotate Speed: 2800rpm
3. Abrasive wheel: 250×1.2×32mm
4. Max. cutting diameter: 80mm
5. Electric motor: Y2-100l-2  3.0KW

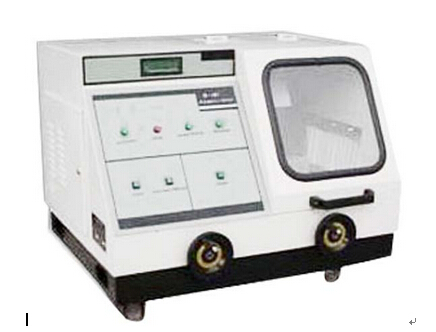

Uređaj za metalurško rezanje uzoraka AC-80

Metallographic Specimen Cutting Machine


Auto Metallurgical Specimen Cutter AC-80


AC-80/AC-100 Features:
● LCD shows all kinds of parameter
● Cutting diameter: φ5-φ80mm(AC-100φ5-φ100mm)
● Cutting capacity:100x200mm
● Manually cutting /Automatic cutting
● Large cutting room, tempered glass observation window
● Improve the cutting quality
● Automatic after cutting
● Increase the depth of cutting
