Prese za uprešavanje uzoraka

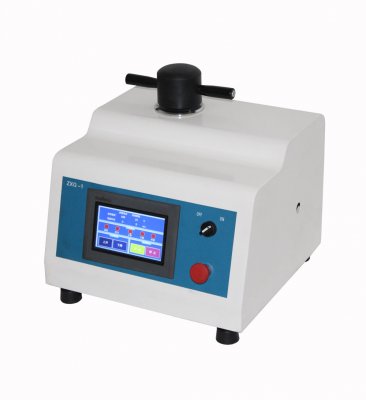

Metalografska presa za uprešavanje uzoraka ZXQ-2

Automatic water cooling Metallographic mounting press




Features and Applications:

1. Used to mount small specimens, specimens in irregular shapes, or difficult to take up.
2. Serves to facilitate grinding and polishing operations and the routine observation under the metallographic microscope.
3. The machine is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatic way.
4. Automatic water cooling
5. With another press of the knob, the machine automatically turns up the specimen, which may be taken away.



Specification:

Specification of the Sample:  φ22mm,                 φ30mm,                45mm

Heater Specifications:  650W,220V,50Hz

Cooling:  automatic water cooling

Total power:  1000W

Dimension: 380×350×420mm

Net Weight:  50 Kg

Standard accessaries: 1 piece of thermoelement,  1 bag of Mosaic powder,1 funnel

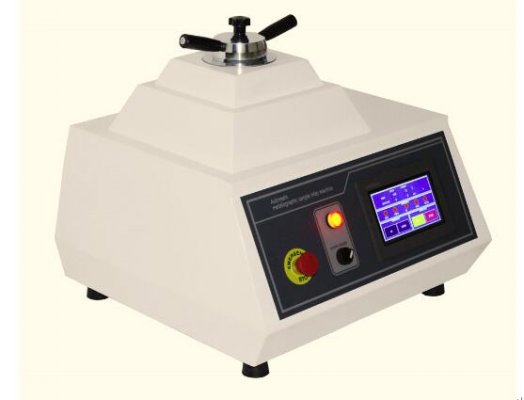

Uređaj za metalografsku pripremu uzoraka TMZXQ-5

TMZXQ-5 HOT Metallographic Inlaying




The sample inlaying machine can inlay improper samples in shape or size to meet the following sampling steps, to obtain required inspection surface, or to protect edges or surface defects caused in the course of sample preparation. In modern metallographic labs, semi-automatic or automatic grinding/polishing machines have a certain requirement in sample size, so the samples must be inlayed. The sample inlaying machine is an indispensable equipment in the metallographic labs.


The machine is an automatic metallographic sample inlaying machine with cooling function, applicable to thermal inlaying of all materials (thermoset and thermoplasticity). Set inlaying parameters such as heating temperature, heat holding time, acting force, etc., put sample and inlaying materials, close the gland, press down the button, and then the machine can inlay automatically without a watchman. The machines may change four kinds of dies at will according to various requirements of samples, and also can press two samples simultaneously.


Technical Parameters
1. Specification of Die: φ22mmφ30mmφ45mm
2. Power Supply: 220V 50HZ
3. Max. Power Consumption: 1600W
4. Setting of System Pressure: 0~2MPa (setting of sampling pressure: 0~72MPa)
5. Setting of Temperature: 0~300℃
6. Setting of Heat Holding Time: 0~99 min. 99 sec.
7. Dimensions: 615mm×510mm×500mm
8. Weight: 110kg
9. Type of Cooling: water-cooled

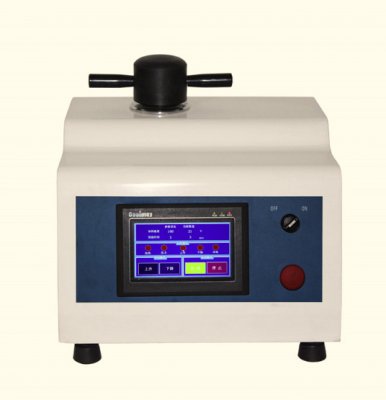

Automatska metalografska presa za uprešavanje uzoraka TMZXQ-1

Automatic Metallographic Sample Mounting Press




Automatic Metallographic Sample Mounting Press is used to mosaic small specimens, specimens in irregular shapes, or specimens which are not easy to take up. It is the preceding process before grinding and polishing metallographic or rock specimens.
   The mosaic operation serves to facilitate the grinding and polishing operations of the specimens and the routine observation of the composition of the material under the metallographic microscope.
   The machine is heated, and intensified with pressure automatically. After the formation of the specimen under pressure, it stops the operation and discharges the pressure also in an automatical way.
   With another press of the knob, the machine automatically turns up the specimen, which may be taken away. Note: It is only for the hot and solid materials (such as jade powder and bakelite powder) with the temperature automatically regulated and controlled.


Technical parameters :
Specification of Samples: φ22mm, φ30mm, φ45mm
Heater: 220V 650W
Total Electric Power: 1000W
Dimensions: 380×350×420mm
Net Weight: 50Kg

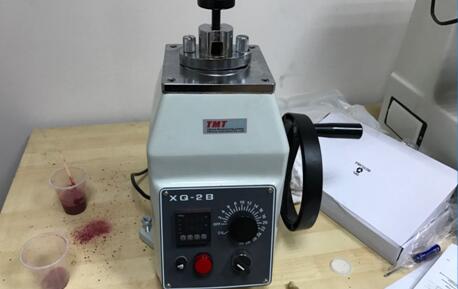

Metalografska presa za uprešavanje uzoraka TMXQ-2B

Metallographic Sample Mounting Press




Model TMXQ-2B Metallographic Sample Mounting Presses are suitable for the thermos-hardening plastic pressing of the small metallographic specimen which is not idiomorphic or hard to take. After forming, it will be very easy for the grinding, polishing of the specimen and it is also convenient for people to measure the metallographic structure under metallographic microscope.


The machine may work stably under the following working conditions:

The height is no more than 1000m;

The temperature of surrounding medium can not be lower than -10 °C or over 40 °C;

The relative humidity of air should be no more than 85% (20 °C).

The voltage fluctuation should be no more than 15% and there should be no obvious vibration source around.

There should be no current conducting dust, explosive and corrosive air.


Model:  TMXQ-2B

Specification of the Sample:  22*15mm, 30*15mm, 45*18mm

Heater Specifications: 650W, 220V, 50Hz

Range of Temperature Adjusted: m100~180°C

Power supply:  Voltage fluctuations within ±15%, 220V,50Hz

Dimension:  330*260*420mm

Net Weight: 33 Kg
