Mjerači boje-kolorimetri-kolorimetar-spektrofotometar

Mjerači  boje koriste modernu i vrlo preciznu mikroprosecnu tehnologiju i rade prema spektralnom postupku. Definisani izvor svjetla osvjetljava uzorak a reflektovano svjetlo sa površine mjeri se spektralno i prikazuje se na display-u mjerača boje ili direktno na PC-zaslonu. Ovim uređajem moguće je mjerenje svjetlećih površina kao npr. LCD-monitori. Mjerne vrijednosti se prikazuju digitalno na mjernom uređaju. Sa opcionalnim software-om moguć je prijenos podataka na PC te njihova naknadna analiza. Polje primjene je jako rašireno. Koristi se za objektivnu kontrolu kvalitete boja u proizvodnji (kvota otpada se reducira), kod mjerenja boja / pri određivanju mjesta boje i broja boje kod ulaznog testiranja za QM-sustave prema DIN EN ISO 9000, za kontrolu pomaka boje uzoraka prema standardu kao i apsolutnom mjerenju mjesta boje.

Osnovne karakteristike:

• Sa eksternim zaslonom (RS-232-interface-om na pokazivaču / Software-Kit uklj. RS-232-kabel opcionlano isporučiv)
• Mjerenje na nesvijetlećim objektima kao papir, koža, tekstil, boje ... samosvjetleće površine kao LCD-monitori mogu biti relativno mjerene
• RGB- i HSL-spektar boja
• Funkcija kalibracije pomoću standarda (Standard (bijela) u opsegu isporuke)
• Relativna funkcija omogućava usporedbu različitih materijala

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

Osnovne karakteristike:

• RAL - standard i NKS - indeks
• Štedi do 90% vašeg  vremena u pronalaženju pravog tona
• Omogućuje mjerenja na licu mjestu
• Veliki zaslon jasno vidljiv
• Software i USB podatkovni kabel uključen

• Memorija: 100.000 kodova, proširivo do 200.000 ili 400.000
• Osvjetljenje: LED

Opseg isporuke:

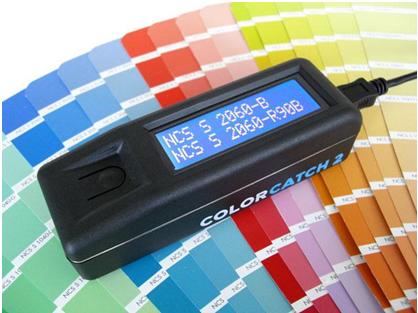

1 x Colorcatch 2, 1 x set boja kodova (više od 2100 boja), 3 x kalibracijske folije,  1 x kovčeg, 1 x software, 1 x USB kabel (2 m duljine), 1 x baterija, upute za upotrebu

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

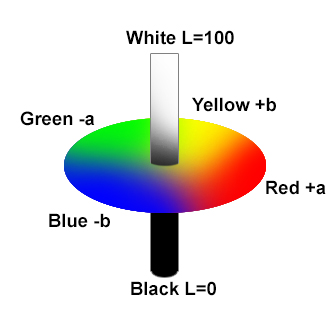

• Mjerno područje: L: 0 ... 100 / a: -128 ... 127 / b: -128 ... 127
• Odziv: ca. 3 sekunde
• Mjerni ugao: 10° po CIE standardu
• Senzor: Silicijum fotodioda
• Napajanje: 2 AA 1,5 V baterije ili eksterno napajanje
• Dimenzije: 171 x 50 x 48,8 mm
• Težina:203,6 g
• Radni uslovi: 0 ... 40 °C / < 85 % rF

Isporuka uključuje:

1 x CIELab  PCE-TCD 100, 1 x napajanje, AA 1,5V baterije, USB-kabal, software, uputstvo

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

• Sistem osvjetljenja: 8/d
• Izvor svjetlosti: standardna bijela svjetlost
• Ugao: 10° prema CIE-Standard
• Uslovi: D65, D50, F11
• Standard: Bijeli i crni standard prema CIE
• Memorija: 12 grupa sa   30 mjesta
• Napajanje: 4 x AA 1,5V ili eksterno
• Dimenzije: 77 x 86 x 210 mm
• Težina: 550 g

Isporuka uključuje:

Mjerač boje, kolorimetar PCE TCR  200, 1 x standardno bijelo tijelo, 1 x standardno crno tijelo, 4 x 1,5 V AA baterije, 1 x 5 V za napajanje, 1 x USB  kabel, 1x software, 1 x uputstvo

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

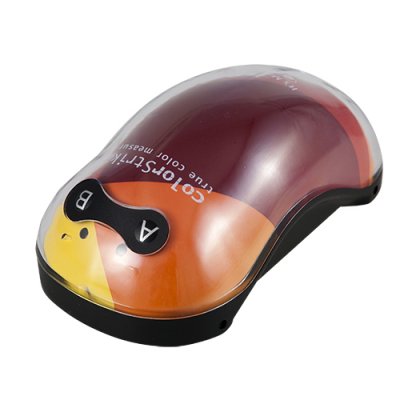

• Jednostavan za upotrebu 2 tastera za  operacije

• QM-omogućen softver
• Izmjerene vrijednosti na računar se prenose  putem Bluetooth-a

• Beskontaktoi mjerenje boje
• Za mnoge materijale (uključujući i tonove kože)
• Težina 120 g na težini

• LED izvor svjetla
• Tip uređaja: Truecolormeter
• Geometrija: 45 ° / 1 ° bzw. 1 ° / 45 °
• Standardi: ISO 13655, DIN 5033
• Rezolucija 12 Bit po kanalu boje

• Mjerno područje: 400 - 700 nm
• Mjerno polje: 15 mm
• Tačnost: < 0,6 ΔE
• Senzori: 2 MCTS True Color Sensoren
• U isporuku je uključen i software, USB-Bluetooth

Za detaljnije informacije kontaktirajte nas na telefon +387 32 650 745

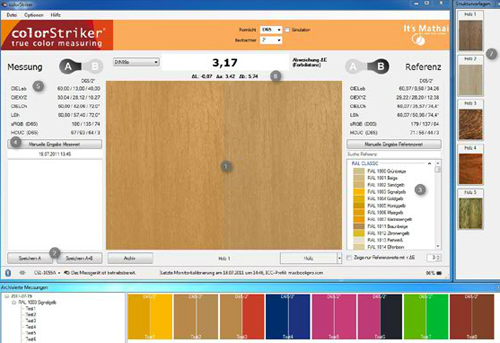

Software ColorStriker

 YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.

 YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.


YS3020 Grating Spectrophotometer

Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.


YS3010 Grating Spectrophotometer

4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.

Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3010 color spectrophotometer features only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

 Features
A.Perfect combination of beautiful appearance and the human body mechanics structural design;

B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

C.Use long life and low power consumption combined LED light source

D.Single 8mm aperture, support both SCI and SCE at the same time;

E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

G.USB port, widely useful;

H.Super stain-resistant and stable standard white calibration plate;

I.Large capacity storage space, over 20,000 measurement data;

J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

K.Camera Locating Function, better position;

l.PC software has a powerful function extension.

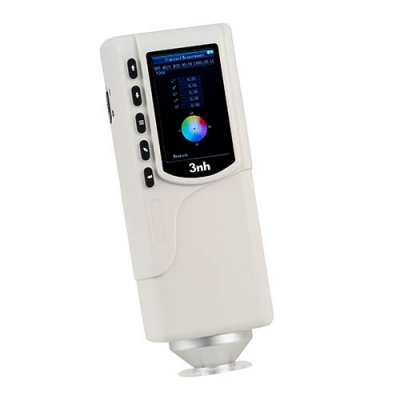

  NS810 spectrophotometer is developed by 3nh with independent intellectual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry.

In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.

3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS810 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.


Applications

 NS810 spectrophotometer is widely used in plastic, electronic, painting, coating, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.  It can measure reflectance spectrum and other color index precisely. NS810 spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

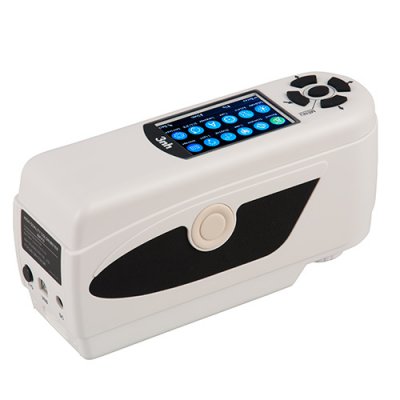

 NS800 spectrophotometer uses the principle of combination LED precision spectroscopy, separates the light according to a certain wavelength interval, and adopts groups of sensor array to perform sensitive analysis. NS800 spectrophotometer with higher accuracy is very sensitive to any colors. It not only can measure L*ab value and delta E value accurately, but also can display spectral reflectance curve which can realize color matching function and calculate the real parameters of various color formulas.

In the R&D process, 3nh scientists and engineers measured various color samples from dark to light, white to black, and other standard color boards provided by ISO (International Standardization Organization). The parameters of test results are integrating with international standards.

3nh also analyzed the parameters from Japan, American and Germany spectrophotometers. The differences of L*ab absolute value between them are within ±1.5. Compared the L*ab value between NS800 and Japan spectrophotometer, when measuring any color objects, the biggest L*ab difference is within ±1.0. This is a breakthrough of 3nh high technology which realizes to be fully compatible with international market.
